Tiger II
1946

An alternate-history continuation of the Tiger II, developed as a battle-worn vehicle with field modifications, layered materials and two presentation variants.

Role: Vehicle Artist
Tools: Maya · Blender
Materials: Substance 3D
Presentation: Unreal Engine 5

Battle-worn Tiger II 1946 vehicle presented in Unreal Engine 5 — Veteran variant · Unreal Engine 5

Concept

I reimagined the Tiger II as if development had continued into 1946. The design combines the recognisable Henschel-turret silhouette with improvised protection, camouflage netting, spare equipment and accumulated damage to suggest a vehicle kept in service beyond its intended lifespan.

The project was built in two forms: a cleaner base vehicle that exposes the underlying model and camouflage, and a veteran version layered with slat armour, netting, gear, mud and wear.

I created the vehicle, including its modelling, UVs, baking, texturing and asset assembly. For the dramatic presentation shot, I built the Unreal Engine studio setup and lighting, used a Niagara system for the smoke, and dressed the ground with rubble assets sourced from Fab.

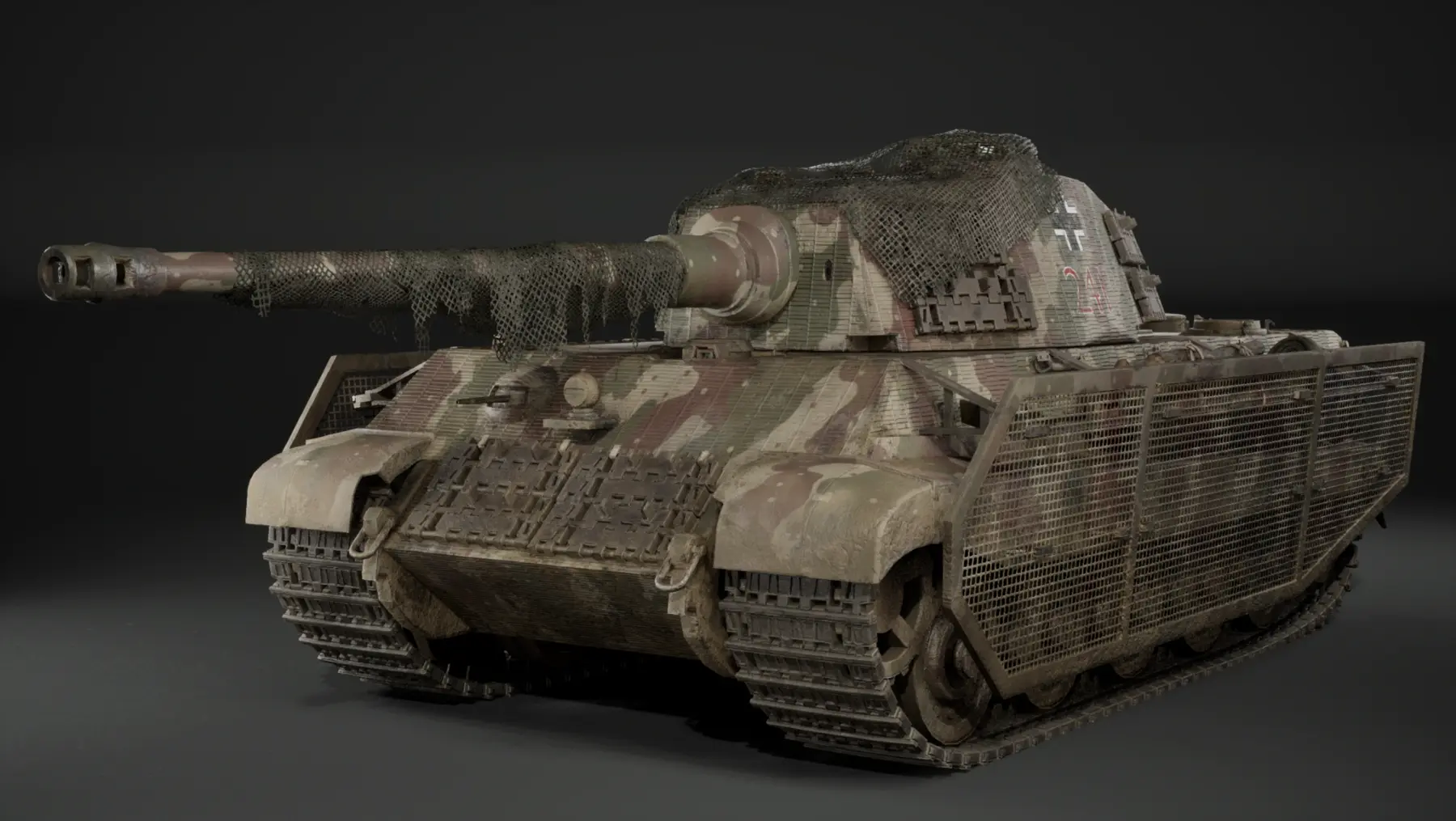

Front three-quarter beauty render of the veteran Tiger II — Veteran configuration

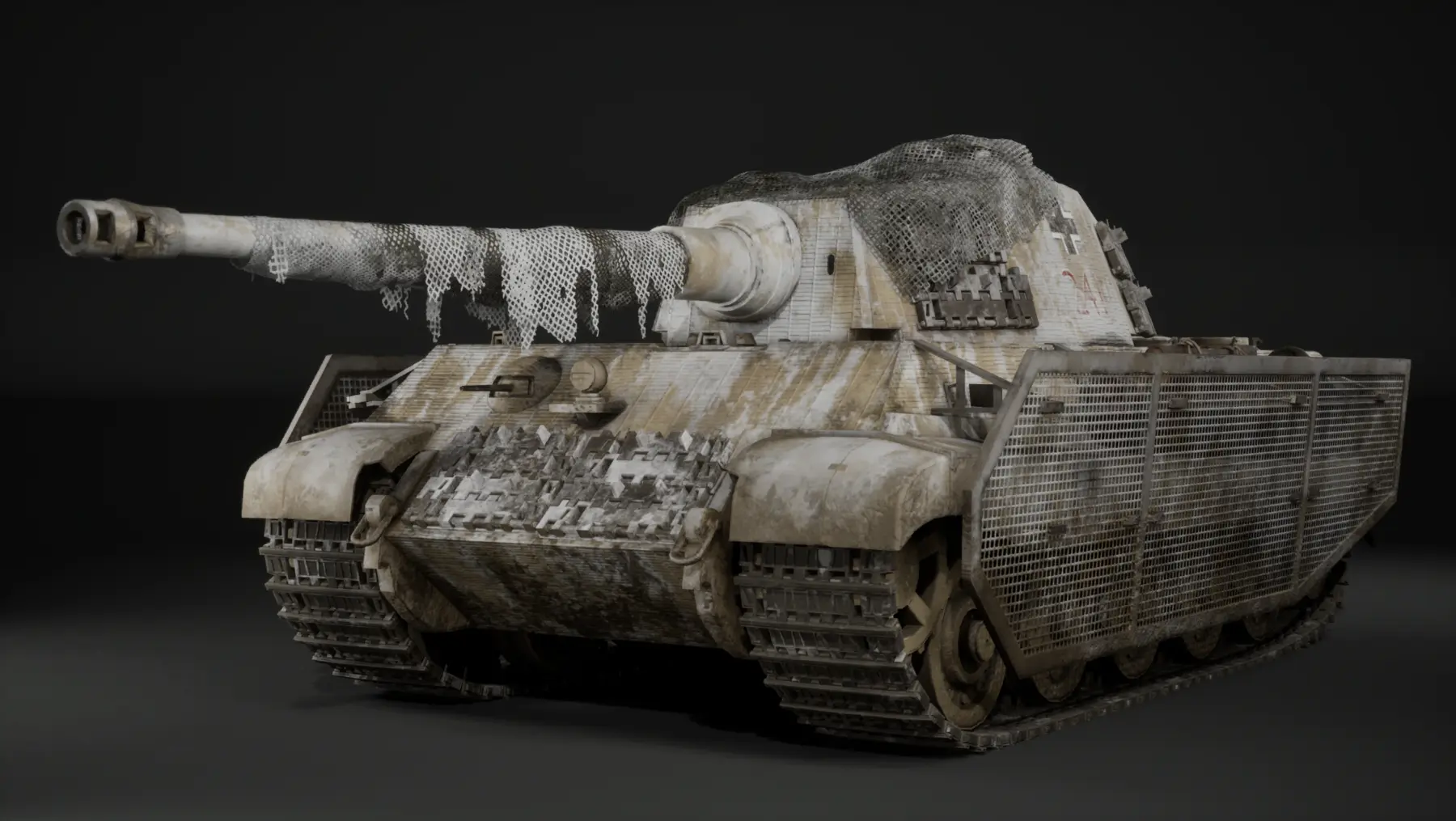

Winter-weathered Tiger II variant — Winter weathering study

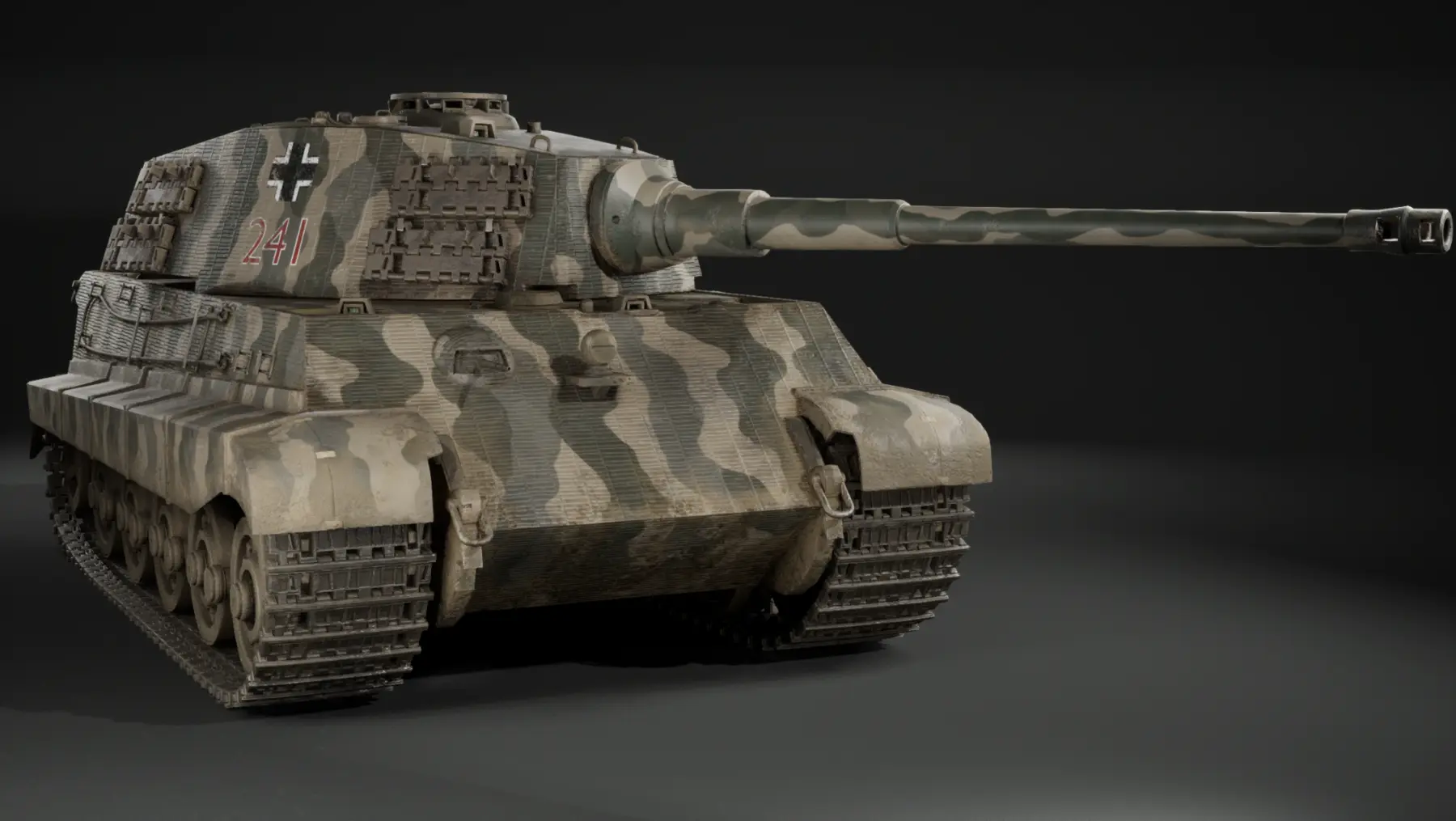

Clean Tiger II base vehicle — Clean base configuration

Two-stage presentation

Showing both versions separates the quality of the base asset from the added storytelling. The clean configuration establishes the vehicle’s proportions, camouflage and zimmerit, while the veteran version demonstrates how secondary assets and surface history can alter its character.

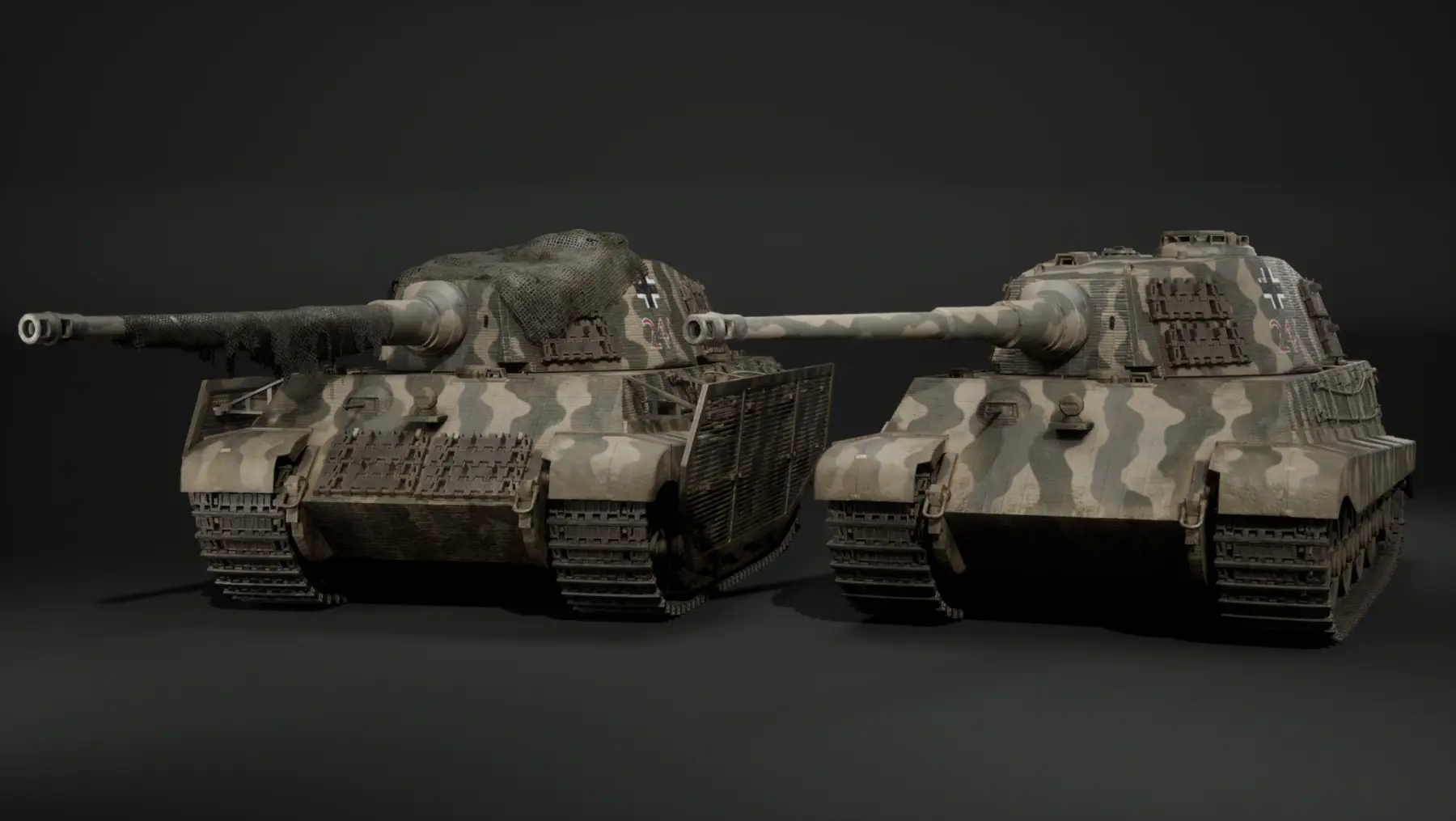

Veteran and clean Tiger II variants displayed side by side — Veteran and clean variants

Modelling and asset construction

The main vehicle was modelled in Maya using a hard-surface workflow. Repeating track components were assembled with MASH, while curves supported ropes and straps. Cloth elements and sandbags were developed through Blender simulations and sculpting before being prepared for the final real-time asset.

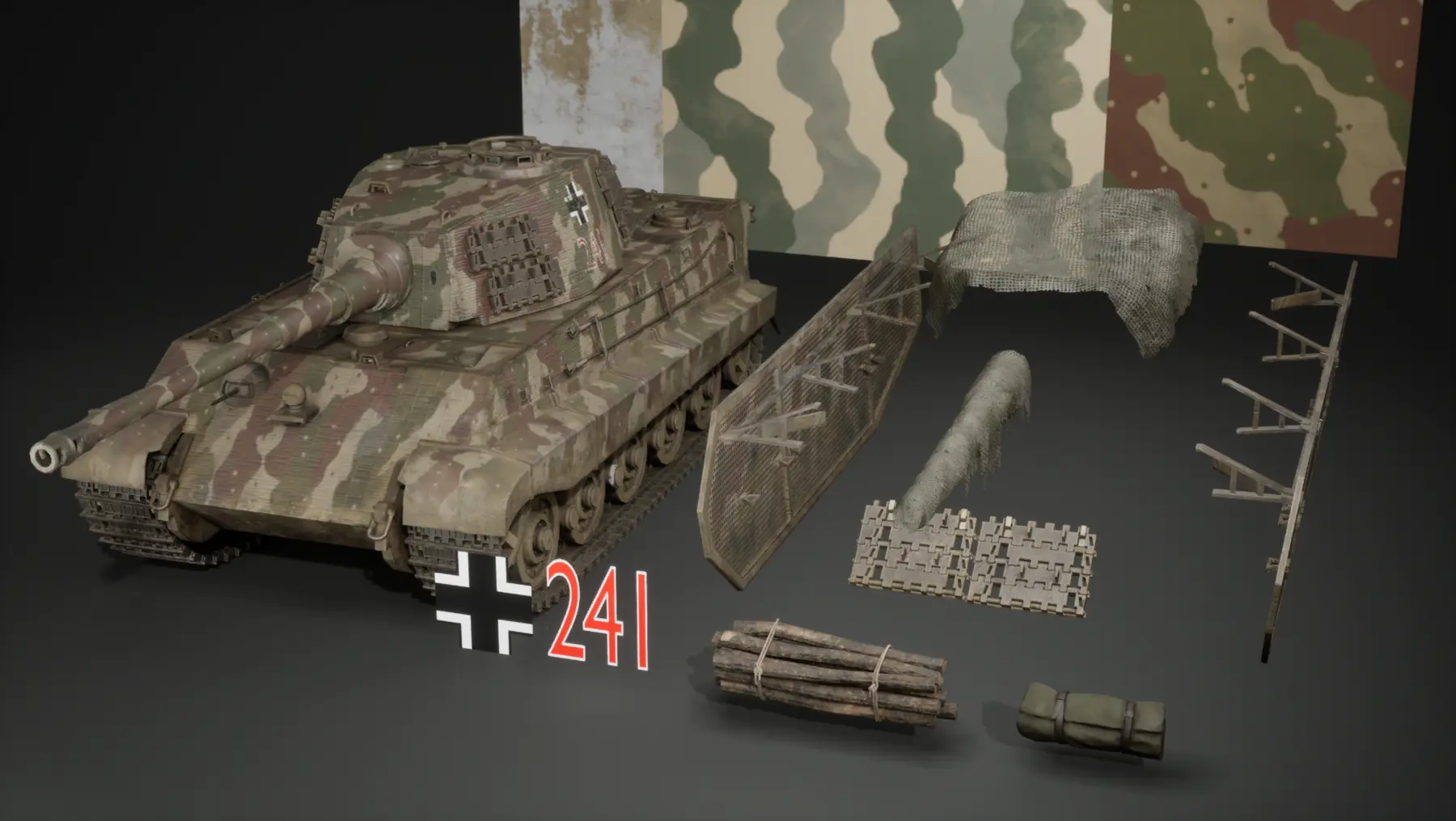

Secondary pieces—including spare tracks, slat armour, logs, storage, chains and camouflage netting—were created as reusable additions. This made it possible to build visual density without permanently merging every storytelling element into the base tank.

≈380KTriangles with wheels and tracks

≈170KTriangles excluding wheels and tracks

4 × 4KTexture sets

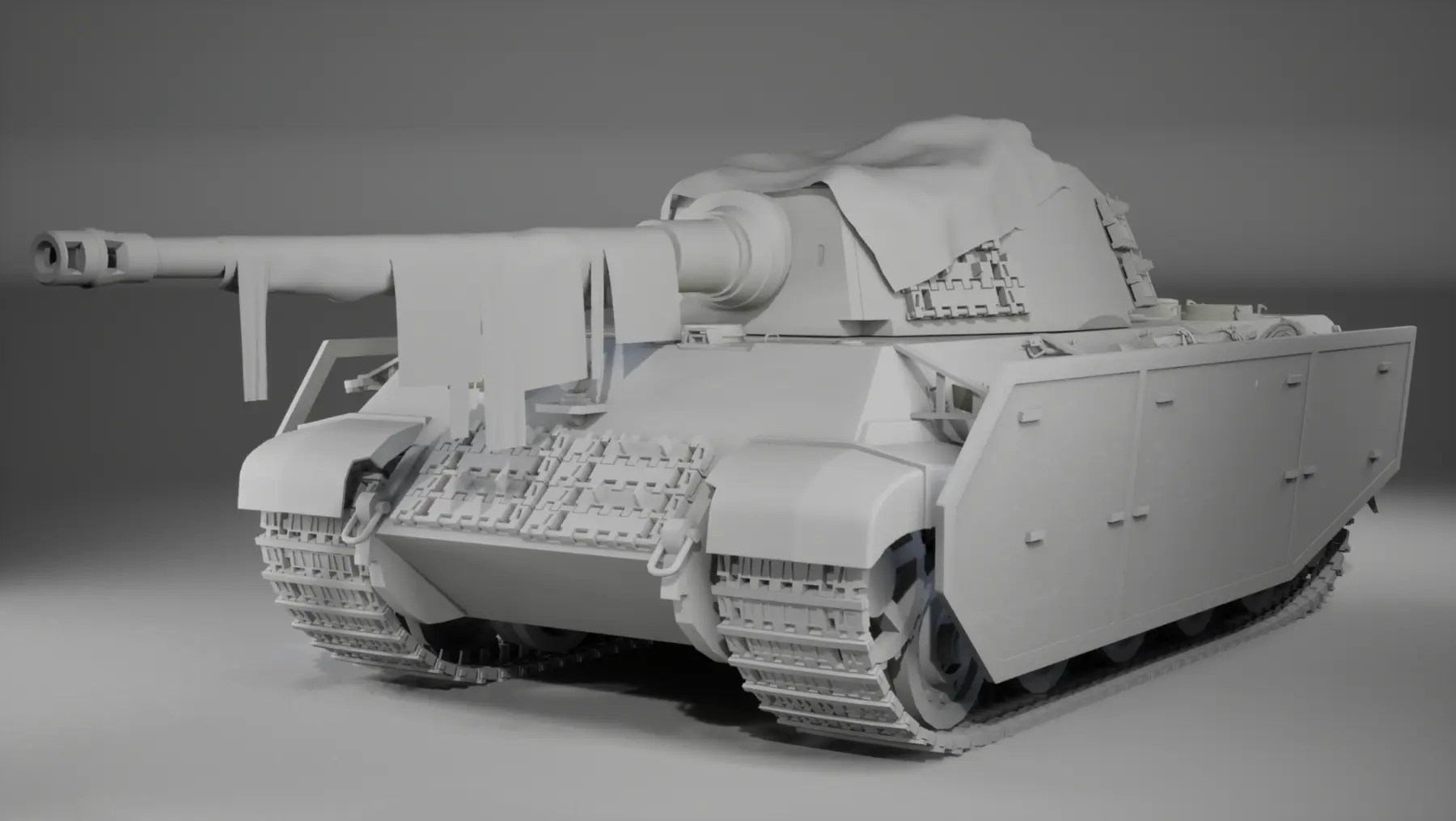

Untextured clay render of the Tiger II veteran configuration — Clay render

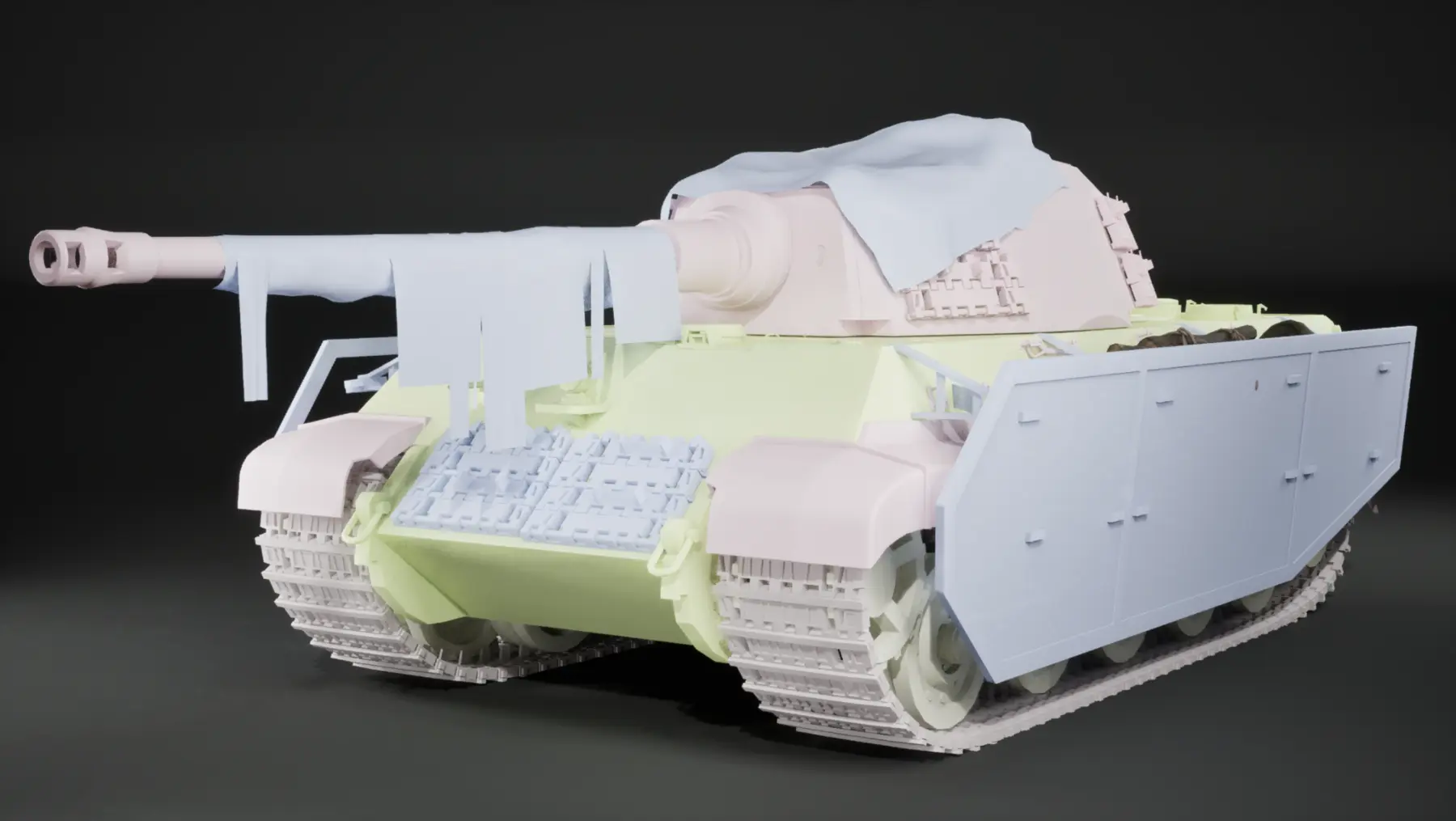

Colour-coded material and asset breakdown — Asset and material separation

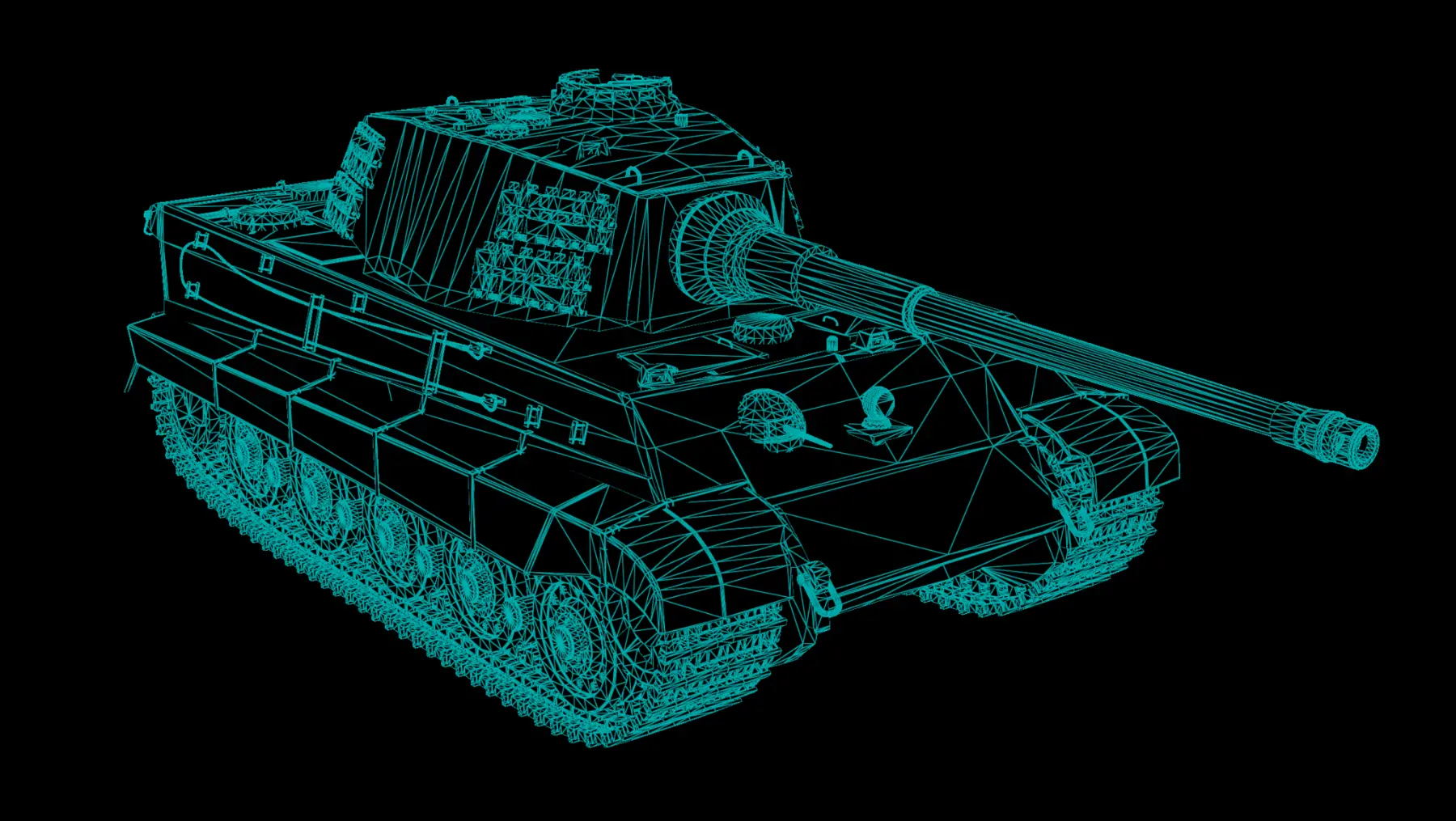

Wireframe view of the Tiger II model — Wireframe overview

Materials and weathering

I built the zimmerit surface in Substance 3D Designer and textured the vehicle across four 4K sets in Substance 3D Painter. The material treatment combines three-colour camouflage with paint wear, roughness variation, grime, dust, mud and leak staining.

Wear was placed according to use rather than applied uniformly: exposed edges, access points, tracks, lower panels and horizontal surfaces receive different kinds of accumulation. The veteran variant pushes this further with damaged cloth, dirty field equipment and heavier environmental buildup.

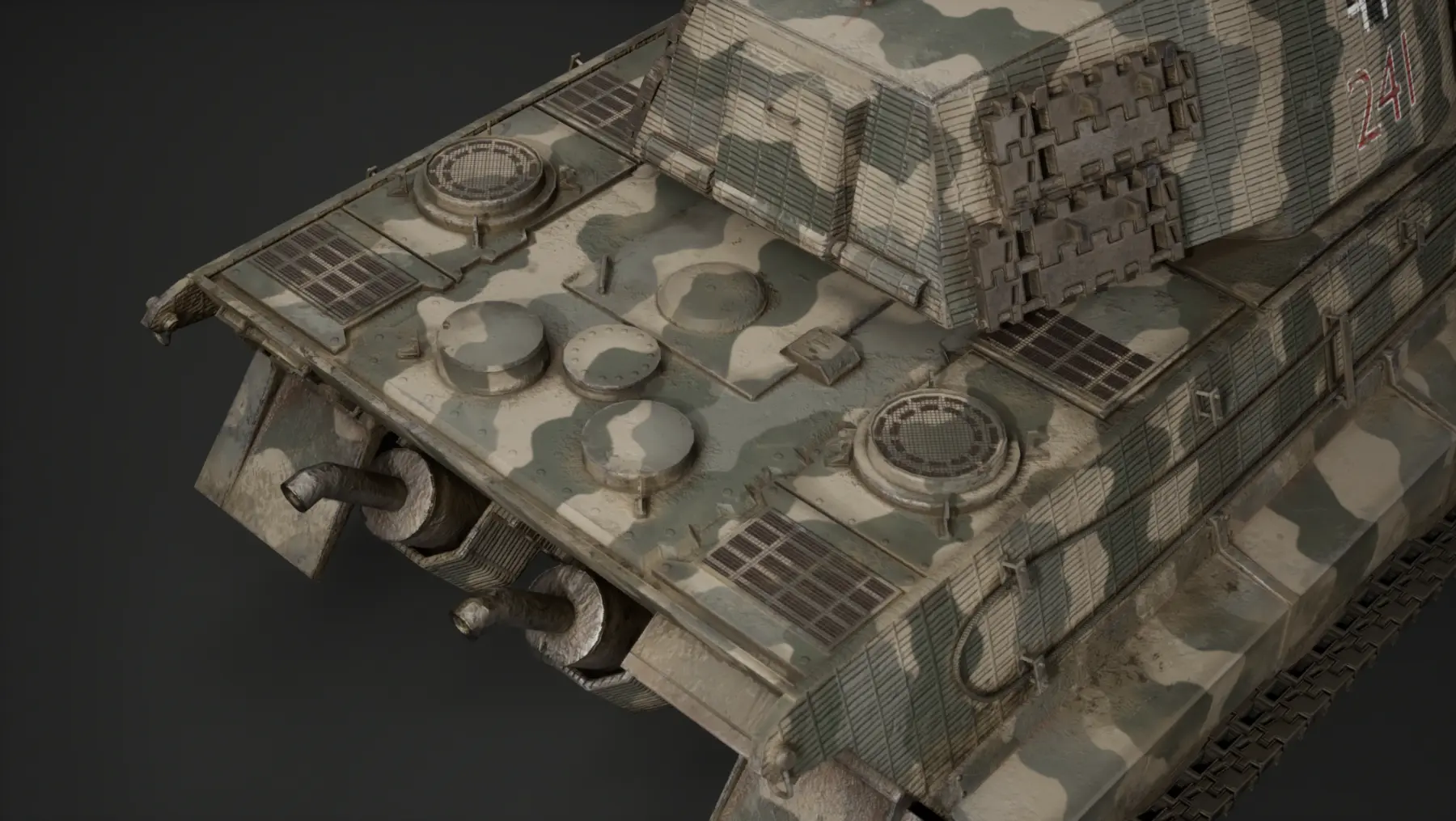

Close-up of engine deck materials, zimmerit and spare tracks — Engine deck and surface-detail study

Real-time presentation

I assembled the final asset in an Unreal Engine 5 studio scene, using box lighting and controlled exposure to preserve the silhouette while keeping the layered surface work readable. For the dramatic opening image, I added smoke with Niagara and arranged rubble sourced from Fab to give the vehicle a grounded presentation setting.

The result is a complete vehicle-art study covering research, hard-surface modelling, high-to-low asset work, UVs, baking, procedural material creation, PBR texturing, optimisation and real-time presentation.
